Strategic Drawing
Please click for the full PDF version
Phase i
Stretford Marketplace
The opening of the Stretford Marketplace, providing retail spaces for new business owners and existing business owners. Provided workshops are designed for business owners to rent as well as transparency of skill transfer for the public.
Canal
The canal is open and becomes the focal point for socialisation and the community of Stretford to unite together.
Phase ii
Stretford Public Hall
The users in Stretford Public Hall who use the studio spaces are able to sell their products at the Stretford Marketplace.
Phase iii
Essoldo Cinema
The existing Essoldo Cinema will be transformed to expand the studio spaces existed in Stretford Public Hall. The studios all apply to the growing businesses in Stretford Marketplace.
Stretford Mall
Existing chain store in Stretford Mall will be replaced by successfull local stores that grew commercially from the Stretford Marketplace. Stretford Mall in the future would be developed with local products, expanding Stretford economically.
Exploded Axonometric
The structural axonometric of Stretford Marketplace. It had two skin. An exterior envelope and a passive skin, that runs the programme of the building.
Structure
Please click for the full PDF version
Plans
Floor plans at +2.00m and +5.60m. The plans show the programme spaces and the building in relation to its inclined surrounding.
Plan +2.00m
Please click for the full PDF version
Please click for the full PDF version
Plan +5.60m
Sections
The sections are exploring the different typologies and programme that occurs in the building.

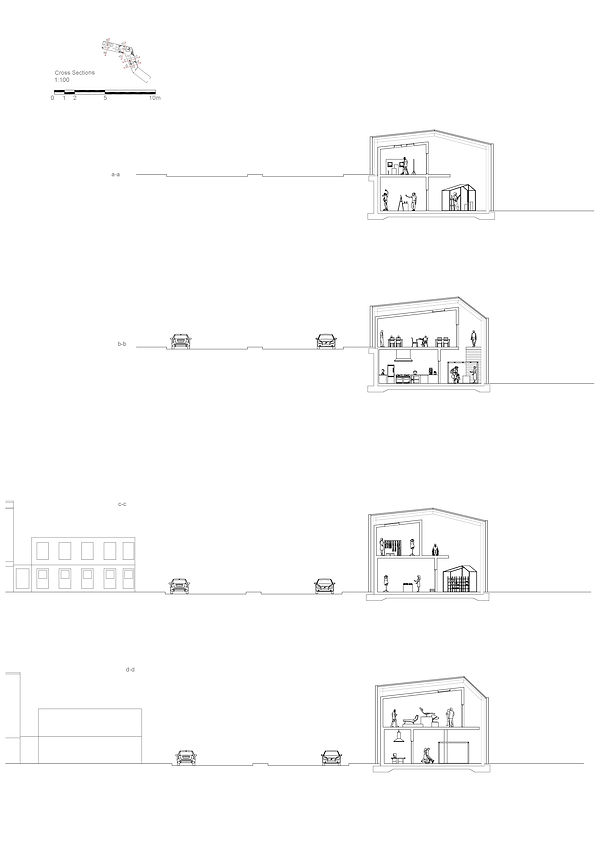

Cross sections
/a-a
/b-b
/c-c
/d-d
Please click for the full PDF version
long section
/e-e
Please click for the full PDF version
'All dancing, all singing' axonometric
The axonometric view of Stretford Marketplace in relation to the Essoldo, Stretford Public Hall and the motorway junctions.
Axonometric 1:100
Please click for the full PDF version
elevations
The structural axonometric of Stretford Marketplace. It had two skin. An exterior envelope and a passive skin, that runs the programme of the building.
Please click for the full PDF version
Elevations
/f-f
/g-g
/h-h
For the love of Detail
Please click for the full PDF version
For the love of Detail
1:20
